Electrically adjustable seats

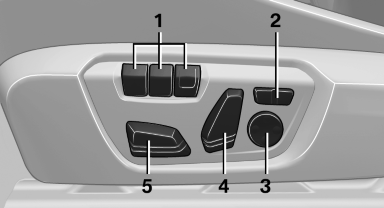

At a glance
1 Seat and mirror memory
2 Backrest width
3 Lumbar support
4 Backrest tilt
5 Forward/backward, height, seat tilt
Note
The seat setting for the driver's seat is stored for the remote control currently in use. When the vehicle is unlocked via the remote control, the position is automatically retrieved if the function, is activated for this purpose.
Adjustments in detail

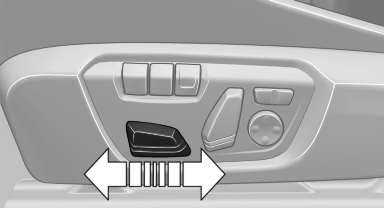

1. Forward/back.

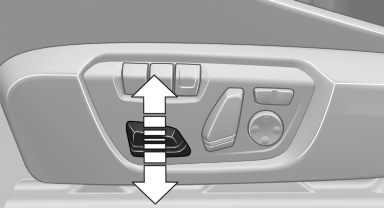

2. Height.

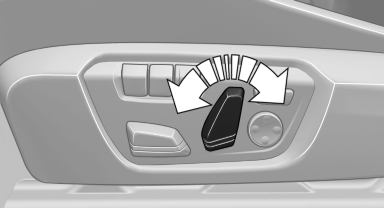

3. Seat tilt.

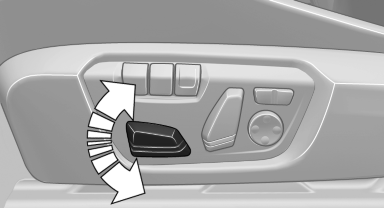

4. Backrest tilt.
