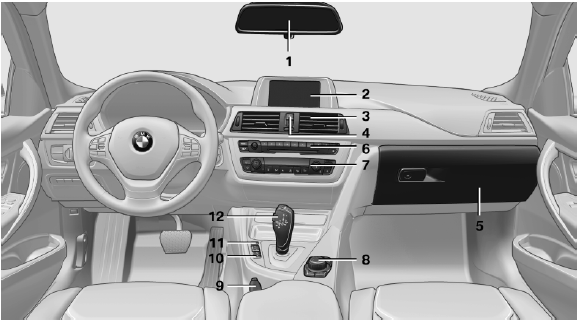

All around the center console
All around the center console
1 Headliner
2 Control Display
3 Ventilation
4
Hazard warning system
Central locking system
5 Glove compartment
6 Radio
CD/multimedia
7 Climate control
8 Controller with buttons
9 Parking brake
10
PDC Park Distance Control
Backup camera
Parking assistant
Surround View
11
Driving Experience Switch
DSC Dynamic Stability Control
12 Transmission selector lever
