In interior

The fuses are located in the front passenger footwell on the underside of the instrument cluster.

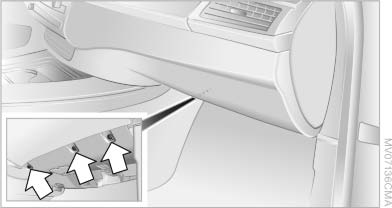

1. Unscrew screws, refer to arrows, of footwell trim panel.

2. Lay the trim panel in the footwell.

2. Lay the trim panel in the footwell.

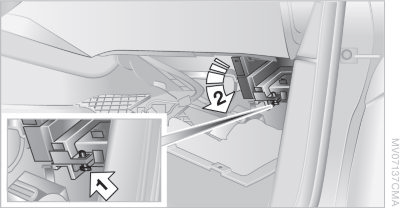

3. Release the screw, arrow 1, and fold the fuse carrier down, arrow 2.

4. Replace the fuse concerned.

4. Replace the fuse concerned.
5. Installation is carried out in the reverse order of removal. Ensure correct and secure attachment of the footwell trim panel in the process.
