Jacking points for the vehicle jack

Jacking points for the vehicle jack
Jacking points for the vehicle jack

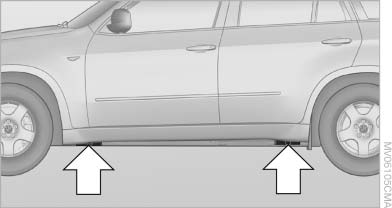

The jacking points for the vehicle jack are located in the positions shown.
