Xenon headlamps

Because of the long life of these bulbs, the likelihood of failure is very low. Switching the lamps on and off frequently shortens their life.

If a bulb fails, switch on the front fog lamps and continue the trip with great care. Comply with local regulations.

xenon headlamps Do not perform work/bulb replacement on xenon headlamps
Have any work on the xenon lighting system, including bulb replacement, performed only by a service center.

Due to the high voltage present in the system, there is the danger of fatal injuries if work is carried out improperly.◀

Parking lamps, roadside parking lamps, daytime running lights

35-watt bulb, H8

Halogen bulbs are pressurized. Therefore, Wear protective goggles and gloves
Halogen bulbs are pressurized. Therefore, wear protective goggles and gloves. Otherwise, there is a danger of injuries if the bulb is accidentally damaged during replacement.◀

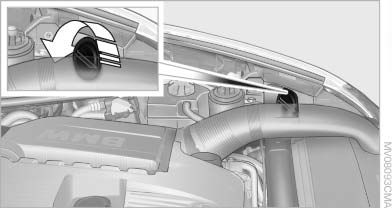

1. Turn the cover to the left and remove.

Turn the cover to the left and remove
Turn the cover to the left and remove

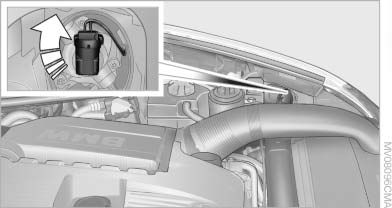

2. Left side of vehicle: rotate the bulb holder to the right, see arrow, and remove.

Right side of vehicle: rotate the bulb holder to the left and remove.

Right side of vehicle: rotate the bulb holder
Right side of vehicle: rotate the bulb holder to the left and remove

3. Disconnect plug and replace bulb.
4. Install in the reverse order.

Side marker lamps

5-watt bulb, WY5W XLL

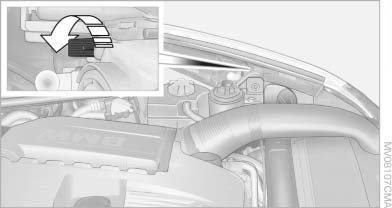

1. Rotate the bulb holder to the left and remove.

2. Pull the bulb out of the bulb holder and replace.

2. Pull the bulb out of the bulb holder and replace.
3. Install in the reverse order.
