Socket for OBD Onboard Diagnosis
Socket for OBD Onboard
Diagnosis

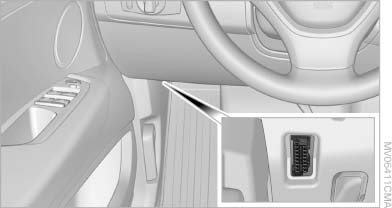

On the driver's side is an OBD socket for checking the primary components in the vehicle emissions.
