Folding in display screen

When using the ski bag or when transporting bulky pieces of luggage, the display screen should be folded in, as otherwise it may be damaged.

down Note when the display screen is folded down
When the screen is folded down, do not open the lid of the center armrest or rest your arm on the screen; otherwise, you may damage the screen.◀

Folding in display screen
Folding in display screen

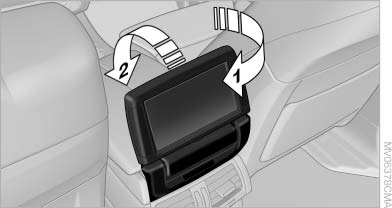

1. Turn the display screen, arrow 1 The display screen switches off.

2. Fold down the display screen, arrow 2.

The display screen is folded out in the reverse order.
